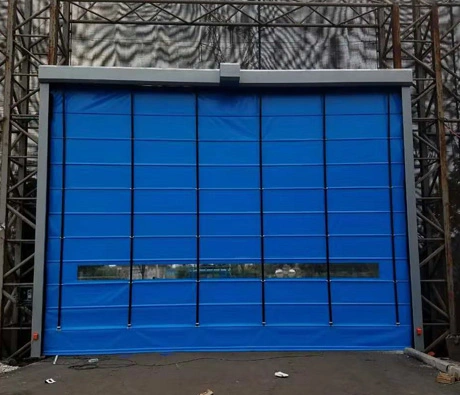

Name: Quick Stacking Door
Brand: Jiangsu Anbixin Internet of Things Technology Co., Ltd.

Features of Quick Stacking Door

Scope of application: Installation of indoor doors or large doorway conditions
Frame: 2mm thick high-quality anti-corrosion cold-rolled steel plate
Maximum size (width x height): 20000mm x 12000mm
Color: Multiple colors to choose from, including yellow, blue, orange, gray, orange red, etc
Security: Optical protection on the door rail, wireless security soft bottom edge protection function
Optional: Different styles of perspective selection [window or visible strip window], can choose top cover, side column cover, motor cover

Specifications of Quick Stacking Door

product name	unit	Configuration Description	remarks
Quick door motor	tower	Wuhan Baojiu fast door dedicated motor; 1. Adaptability: Strong overload resistance, able to withstand loads three times the rated torque, especially suitable for situations with instantaneous load fluctuations and fast starting requirements; 2. The rated speed can reach 1400-2000 revolutions per minute; 3. Accuracy: Closed loop control of position, speed, and torque has been achieved; Overcoming the problem of stepper motor stepping out of step	Baojiu
control system	cover	360 pulse rotary encoder control (capable of precise stroke control), with functions such as interlocking and linkage with other devices;	Baojiu
Stacking gate body	cover	Using SIJIATEX high-strength industrial polyester fiber base fabric, with a door curtain thickness of 0.8mm, suitable for temperatures ranging from -30 to+70 ℃, and a fire resistance of B2. Both the base and the middle part are equipped with windproof reinforcement rods, with a wind resistance strength of 6500N; Surface self-cleaning, no dust accumulation, easy to clean.	Color window optional
Door frame	pay	The door frame is made of galvanized steel plate using German laser cutting processing technology, with a surface spray treatment for beautiful and high-quality anti-corrosion.	Color (optional)
Door cover and motor cover	pay	The door cover and motor cover are made using German laser cutting technology, with a surface spray treatment that is aesthetically pleasing, high-quality, and corrosion-resistant.	Color (optional)
Hardware accessories	several	Connectors and fastening screws, etc
Control box	cover	A professionally designed and manufactured control box, beautiful and practical, with a protection level of IP54
window	individual	Imported PVC transparent crystal soft board with a thickness of 1.5-2.0mm, providing safer entry and exit for personnel (the height depends on the actual situation)	optional
Sealing performance	introduce	The bottom of the door curtain is equipped with an airbag cloth pocket, which can be tightly combined with various uneven surfaces. The guide rail is built-in with a brush, which can play a role in sealing, dust prevention, insect prevention, etc;	have
Incident light	cover	The door runs downwards, and when an object is tested, the door reverses upwards	Tianjin Jietaike
Opening method	cover	KSDJM - (500-2000) geomagnetic, manual button;	Optional (paid)

Composed of Rapid Stacking Doors

Door curtain - The segmented door curtain is made of high-density polyester fiber (thickness 0.8mm), and the transparent window is made of fully transparent PVC film (thickness 1.5mm).
Door frame structure - The door frame is made of anti-corrosion galvanized steel plate processed and formed, with a surface spray treatment, which has a beautiful appearance and is sturdy and durable.
Drive system - drive dedicated motor power: 0.75-4kw; Voltage 220V/380V
Control system - IP54 control box is compatible with various commonly used protective devices and can be used with multiple door opening systems; The overall system adopts PCL digital programming to achieve safe passage of personnel, vehicles, and items.
